Description

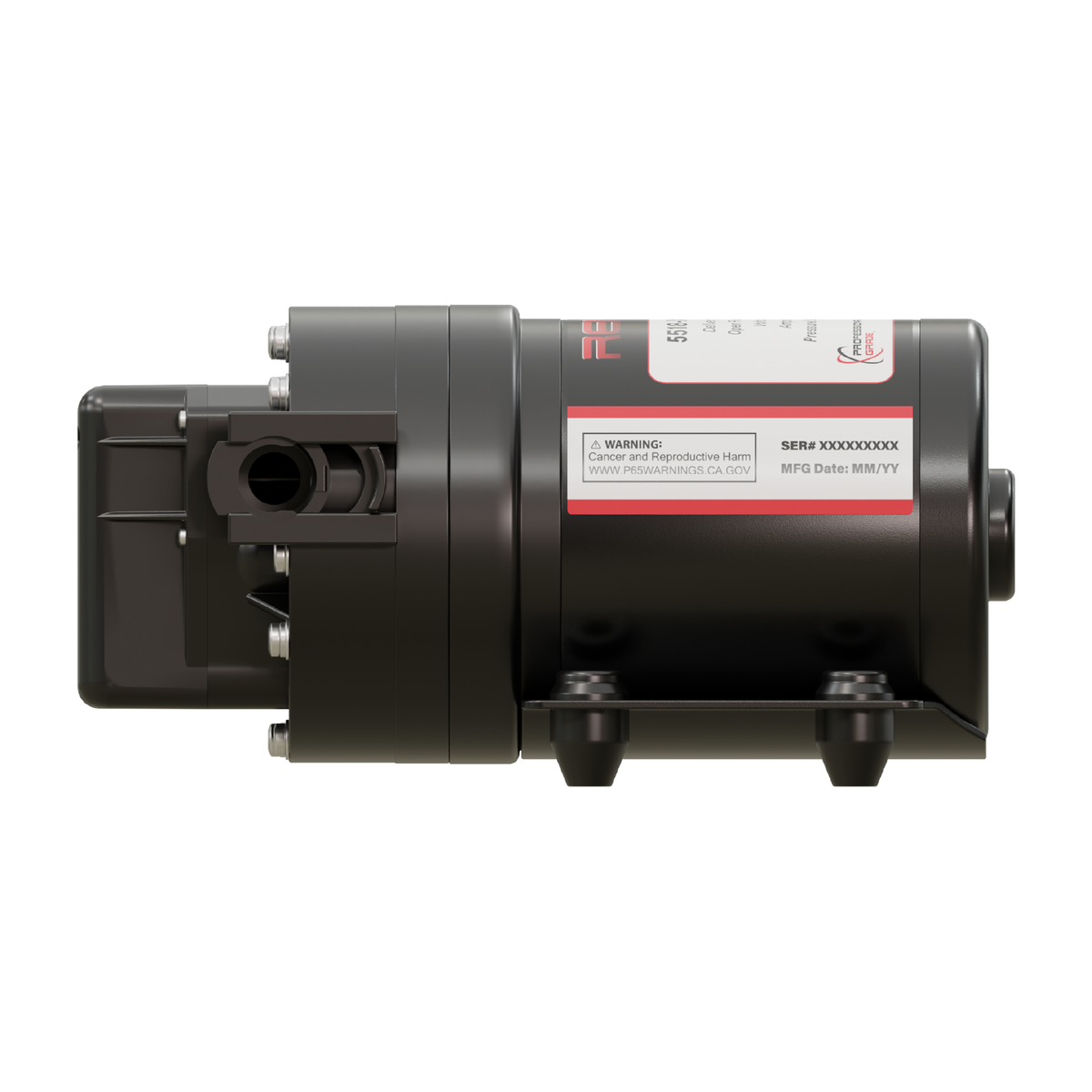

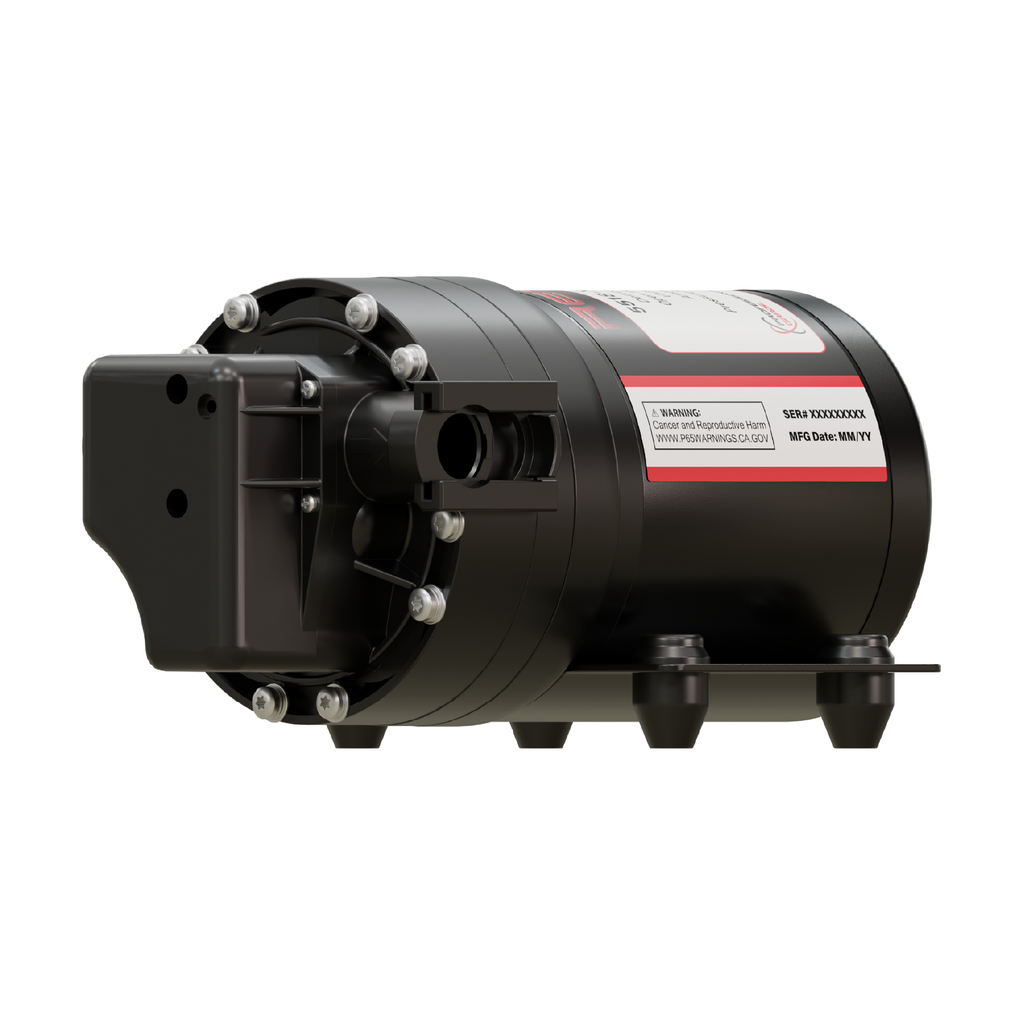

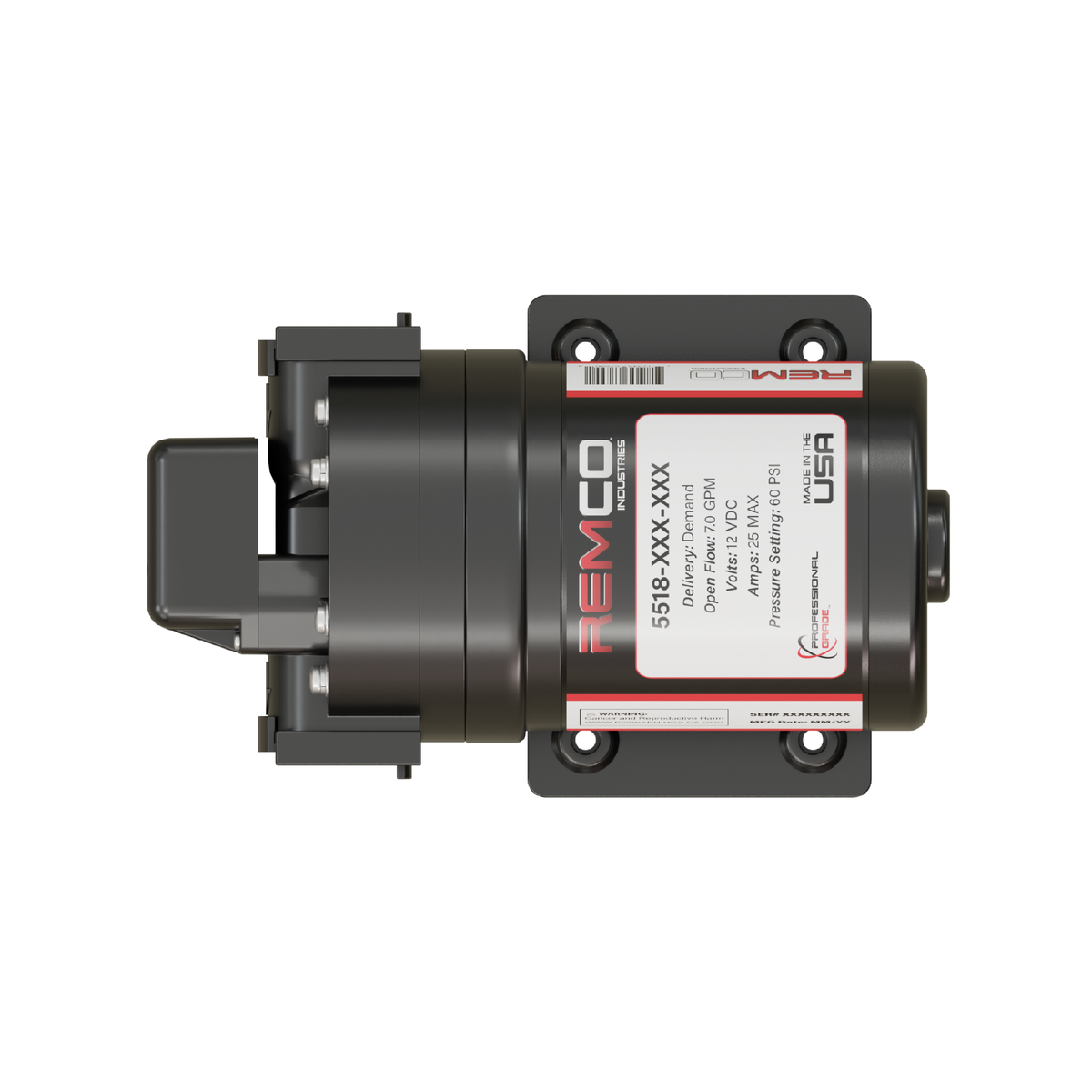

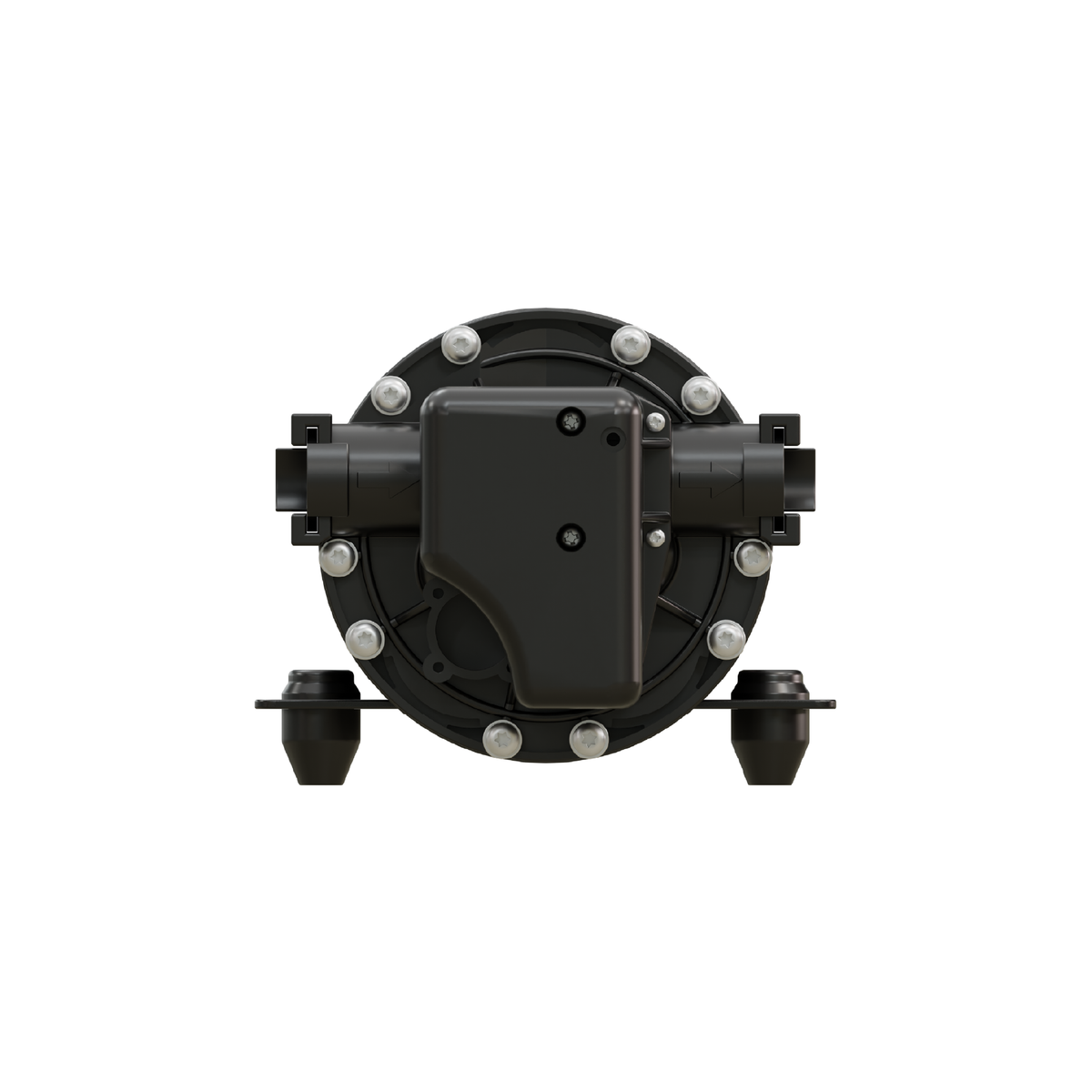

The Remco Fatboy demand pump is rated for up to 7.0 GPM open flow and up to 100 PSI maximum pressure for 12-volt spray-system builds. Its pressure switch controls on-demand operation, and the sealed motor includes 12 AWG wire leads.
Specifications
- Model: 5518-1I1-94A-B
- Maximum flow: 7.0 GPM
- Maximum pressure: 100 PSI
- Power: 12 VDC
- Control: On-demand pressure switch
- Ports: 3/4-inch quick attach with 1/2-inch barbs
- Self-priming: up to 14 feet vertically
- Wire leads: 12 AWG, 12 inches long
- Maximum liquid temperature: 140°F
- Maximum shell temperature: 180°F
- Dry-run capable
- Made in the USA
Designed for use with common agricultural spray chemicals such as herbicides, fertilizers, and insecticides. Confirm compatibility with your cleaning solution before use.
Must be used with a Remco wire harness.
Availability
Ships directly from our dealer's Florida warehouse. Contact Fort Bend Wash Supply for product availability and delivery timing.
Before you order
Does it produce 7 GPM at 100 PSI?
No. The 7 GPM figure is open flow; output falls as pressure rises. Remco lists maximum pressure separately. See the manufacturer performance sheet.
What power and wiring does it need?
This is a 12 VDC demand pump. Use the required Remco wire harness and follow the manufacturer's installation instructions.
